Solanki Pipes manufactures HDPE Pipes from 20 mm to 1000 mm OD with pressure ratings from PN 2.5 to PN 10, in PE 80 and PE 100 grades, conforming to IS 4984:2016.
100% Virgin PE80 / PE100 Granules.
Flexibility And Crush Resistance.
Hydrostatic Strength And Durability
Chemical Resistance.
Lightweight And Easy & Fast Installations.
SCGR (Slow Crack Growth Resistance) Properties.
No Bacterial Growth.
Leak-free Monolithic Pipe

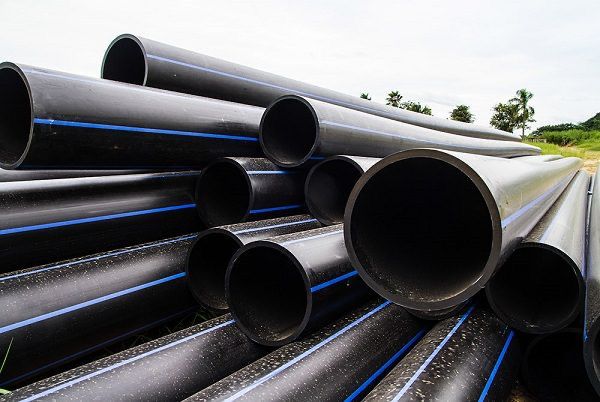

High Density Polyethylene (HDPE) pipes represent one of the most versatile and durable polymer piping solutions used across water, gas, industrial and infrastructure sectors. Manufactured from PE 80 or PE 100 grade resins, HDPE pipes provide excellent toughness, flexibility and resistance to environmental stress cracking. Their ability to withstand impact, chemicals and cyclic loading makes them especially suitable for both buried and above-ground applications where reliability and longevity are critical.
At Solanki Pipes, our HDPE range covers a broad spectrum of diameters and pressure classes to meet diverse engineering requirements. The material's low permeability and smooth internal bore reduce friction losses and improve hydraulic performance, which is particularly important for potable water distribution and long-distance transfer. HDPE's flexibility allows it to accommodate ground movement and thermal expansion better than rigid materials, reducing joint stresses and the likelihood of failure in seismic or settlement-prone areas.
Joining methods for HDPE such as butt fusion, electrofusion and mechanical fittings produce strong, leak-free integrals that often equal or exceed the parent pipe strength when installed correctly. This reliability lowers the need for frequent repairs and contributes to a lower lifecycle cost compared to metallic alternatives. The material is resistant to corrosion, scaling and biological growth, making it suitable for potable water systems and wastewater applications. HDPE also performs well in harsh chemical environments and industrial effluent conveyance.
From an installation perspective, HDPE's light weight reduces transportation and handling costs, and its flexibility enables longer continuous lengths to be laid with fewer joints beneficial for trenching and trenchless methods like horizontal directional drilling. Solanki Pipes subjects each production batch to dimensional checks, melt flow and mechanical testing to ensure compliance with relevant standards and project specifications. The combination of material performance, robust jointing techniques, and strict quality control makes HDPE an economical, long-lasting solution for municipal water mains, irrigation networks, gas distribution, industrial piping and a variety of infrastructure projects.
Beyond functionality, HDPE aligns with sustainable construction practices: its low material mass, recyclability and long service life reduce environmental impacts over the pipeline's lifecycle. Whether you are specifying for rural irrigation, urban distribution, industrial processes or utility conduits, Solanki Pipes' HDPE products combine proven engineering performance with dependable manufacturing and field support.
| Nominal OD (mm) | SDR 17 (PN 6) Wall Thickness (mm) |
SDR 13.6 (PN 8) Wall Thickness (mm) |
SDR 11 (PN 10) Wall Thickness (mm) |
SDR 9 (PN 12.5) Wall Thickness (mm) |
SDR 7.4 (PN 16) Wall Thickness (mm) |
|||||
|---|---|---|---|---|---|---|---|---|---|---|
| - | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max |
| 20 | - | - | - | - | 2.00 | 2.30 | 2.30 | 2.70 | 2.80 | 3.20 |
| 25 | - | - | - | - | 2.30 | 2.70 | 2.80 | 3.20 | 3.50 | 4.00 |
| 32 | 1.90 | 2.20 | 2.40 | 2.80 | 3.00 | 3.40 | 3.60 | 4.10 | 4.40 | 5.00 |
| 40 | 2.40 | 2.80 | 3.00 | 3.50 | 3.70 | 4.20 | 4.50 | 5.10 | 5.50 | 6.20 |
| 50 | 3.00 | 3.50 | 3.70 | 4.20 | 4.60 | 5.20 | 5.60 | 6.40 | 6.90 | 7.70 |
| 63 | 3.80 | 4.30 | 4.70 | 5.30 | 5.80 | 6.60 | 7.10 | 8.10 | 8.60 | 9.60 |
| 75 | 4.50 | 5.10 | 5.60 | 6.40 | 6.80 | 7.70 | 8.40 | 9.50 | 10.30 | 11.50 |
| 90 | 5.40 | 6.10 | 6.70 | 7.60 | 8.20 | 9.30 | 10.10 | 11.40 | 12.30 | 13.70 |
| 110 | 6.60 | 7.50 | 8.10 | 9.20 | 10.00 | 11.30 | 12.30 | 13.90 | 15.10 | 16.80 |
